Woofer cone driver W.22.200.8.MCX_v3





W.22.200.8.MCX_v2

Key features:

  • Optimal for 3 way application

  • 8" nominal diameter

  • 1,5" nominal coil diameter

  • 200 W Max recommended amplifier power

  • 200 W Program Power

  • 100 W AES Power Handling

  • 8 Ohm Nominal impedance

  • 91 dB Sensitivity

  • Modified Cellulose Cone

  • Double demodulation rings

  • Mirror Drive Technology

  • Voice coil former material - aluminum

  • Voice coil material - self bonding copper wire

  • High Stability steel basket

  • Ferrite magnet

  • Recommended enclosure: Bass - Reflex 30 L @ 35 Hz





W.22.200.8.MCX_v2

Parameters:

  • Nominal impedance - 8 Ohm

  • Program Power - 200 W (40 - 6 000 Hz)

  • Power Handling AES - 100 W (40 - 6 000 Hz)

  • Sensitivity (2,83 V / 1 m.) - 91 dB

  • Fs - 26 Hz

  • Re - 5,0 Ohm

  • Qms - 2,45

  • Qes - 0,46

  • Qts - 0,39

  • Cms - 1,79 mm/N

  • Mms - 21,7 g

  • BL - 6,1 T.m

  • Vas - 117 L

  • L 1kHz - 0,29 mH

  • L 10 kHz - 0,16 mH

  • SD - 0,0214 m2

  • Eta - 0,41 %

  • Voice coil diameter - 35 mm

  • Max. linear excursion - 10 mm (p-p)

  • Mechanical displacement range - 22 mm (p-p)



Frequency response:

W.22.200.8.MCX_v2 Frequency response

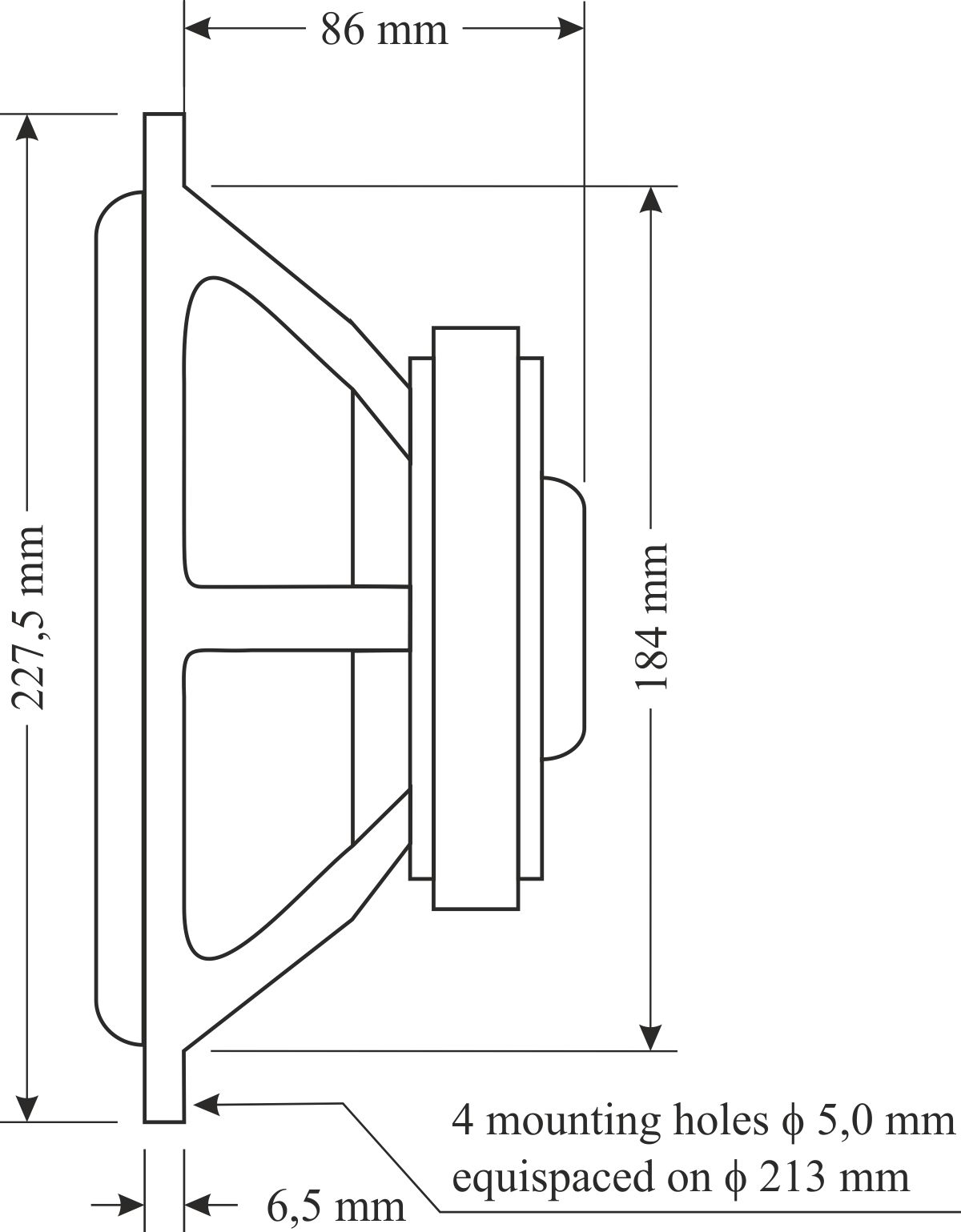

W.22.200.8.MCX_v2 dimension









Materials:

  • Magnet - Ferrite

  • Basket/panel - Steel

  • Diaphragm - Modified Cellulose











Dimension:

  • Overall diameter - 220,5 mm

  • Baffle cut-out diameter - 186 mm

  • Mounting holes diameter - 5 mm

  • Bolt circle diameter - 210 mm

  • Overall depth - 93 mm

  • Netto weight - 1,9 kg









STX reserves the right to change technical data.



Diameter - 220,5 mm     Power - 200 W     Impedance - 8 Ω     SPL - 91 dB     Fs - 26 Hz     Qts - 0,39     Vas - 117 L     Cone material  - Modified Cellulose     Recommended enclosure - Bass - Reflex 30 L @ 35 Hz
