Aluminum former material ASV 0,10
Aluminum former material ASV 0,10 Thicness - 0,10 mm Dimensions - 250 x 500 mm Alcohol (›96%) or thermal (temp. 180 ° C - 230 ° C) activated adhesive layer
Aluminum former material ASV 0,15
Aluminum former material ASV 0,15 Thicness - 0,15 mm Dimensions - 250 x 500 mm Alcohol (›96%) or thermal (temp. 180 ° C - 230 ° C) activated adhesive layer
Aluminum former material ASV 0,20
Aluminum former material ASV 0,20 Thicness - 0,20 mm Dimensions - 250 x 500 mm Alcohol (›96%) or thermal (temp. 180 ° C - 230 ° C) activated adhesive layer
Bass-Reflex port 54x114 Dimensions:A - 54 mm B - 114 mm C - 46 mm D - 32 mm E - 2,0 mm Material - polypropylene
Bass-reflex port 73x107 Dimensions:A - 73,5 mm B - 107 mm C - 63 mm D - 43 mm E - 1,9 mm Material - polypropylene
STX Bass-reflex port 99x115 Material - Polypropylene Overall diameter 98,5 mm Overall length 110 mm Diameter in the middle of the tunnel 58 mm Profiled tunnel outlet to minimize turbulence Standard colors Black, White, Graphite metallic Other color available on request (minimum 1000 pcs.)
STX Bass-Reflex port 123x125 Material - Polypropylene Overall diameter 123 mm Overall length 125 mm Diameter in the middle of the tunnel 82 mm Profiled tunnel outlet to minimize turbulence Standard colors Black, White, Silver Other colors available on request (min 500 pcs.)
Bass-reflex port 157x154 Dimensions: A - 157 mm B - 154 mm C - 141 mm D - 102 mm E - 2,5 mm Material - polypropylene
Recone kit RD.9.500.8.TI Technical data: Recone kit D-500-8-Ti-S ; D.9.500.8.TI ; CD.STX.1.1,5.500.8.F.T.TI ; CD.STX.1.1,5.500.8.F.B.TI Diaphragm material - titanium Former material - kapton Winding material - CCAW Coil diameter - 1,5"
Recone kit RD.14.1000.8.TI Technical data: Recone kit D-1000-8-Ti-S ; D.14.1000.8.TI ; CD.STX.1.2.1000.8.F.T.TI ; CD.STX.1.2.1000.8.F.B.TI Diaphragm material - titanium Former material - kapton Winding material - CCAW Coil diameter - 2"
Recone kit RD.18.1500.8.TI Technical data: Recone kit D-1500-8-Ti ; D.18.1500.8.TI ; CD.STX.1.3.1500.8.F.T.TI ; CD.STX.1.3.1500.8.F.B.TI Diaphragm material - titanium Former material - kapton Winding material - CCAW Coil diameter - 3"

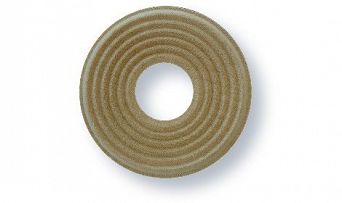

STX Spider R-60-20-2 Material: cloth Outer diameter (A): 60 mm Inner diameter (B): 20 mm Height (C): 2 mm
Ferrite magnet M-65-32-10 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 65 mm Internal diameter - 32 mm Height - 10 mm
Ferrite magnet M-65-32-15 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 65 mm Internal diameter - 32 mm Height - 15 mm
STX Spider R-68-27-4 Material: cloth Outer diameter (A): 68 mm Inner diameter (B): 27 mm Height (C): 4 mm
STX Spider R-69-26-11 Material: cloth Outer diameter (A): 69 mm Inner diameter (B): 26 mm Height (C): 11 mm
Ferrite magnet M-70-32-15 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 70 mm Internal diameter - 32 mm Height - 15 mm
Ferrite magnet M-70-32-20 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 70 mm Internal diameter - 32 mm Height - 20 mm
STX Spider R-78-26-1 Material: cloth Outer diameter (A): 78 mm Inner diameter (B): 26 mm Height (C): 1 mm
STX Spider R-78-27-4 Material: cloth Outer diameter (A): 78 mm Inner diameter (B): 27 mm Height (C): 4 mm
Ferrite magnet M-80-32-20 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 80 mm Internal diameter - 32 mm Height - 20 mm
STX Spider R-84-28-6 Material: cloth Outer diameter (A): 84 mm Inner diameter (B): 28 mm Height (C): 6 mm
Ferrite magnet M-90-45-17 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 90 mm Internal diameter - 45 mm Height - 17 mm
Ferrite magnet M-90-45-20 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 90 mm Internal diameter - 45 mm Height - 20 mm
STX Spider R-92-26-0 Material: cloth Outer diameter (A): 92 mm Inner diameter (B): 26 mm Height (C): 0 mm
STX Spider R-92-27-3 Material: cloth Outer diameter (A): 92 mm Inner diameter (B): 27 mm Height (C): 3 mm
STX Spider R-92-27-6 Material: cloth Outer diameter (A): 92 mm Inner diameter (B): 27 mm Height (C): 6 mm
STX Spider R-92-37-2 Material: cloth Outer diameter (A): 92 mm Inner diameter (B): 37 mm Height (C): 2 mm
STX Spider R-94-37-6 Material: cloth Outer diameter (A): 94 mm Inner diameter (B): 37 mm Height (C): 6 mm
STX Spider R-96-36-7 Material: cloth Outer diameter (A): 96 mm Inner diameter (B): 36 mm Height (C): 7 mm
STX Spider R-97-36-4 Material: cloth Outer diameter (A): 97 mm Inner diameter (B): 36 mm Height (C): 4 mm
STX Spider R-98-36-9 Material: cloth Outer diameter (A): 98 mm Inner diameter (B): 36 mm Height (C): 9 mm
Ferrite magnet M-100-45-20 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 100 mm Internal diameter - 45 mm Height - 20 mm
Price for two pieces. Colours: Black & white, Wenge, Black Two way Bass-reflex system Power - 150 W Impedance - 8 Ω Sensitivity - 88 dB Frequency response - 29 Hz - 28 kHz Woofer 1 x 180 mm Tweeter 1 x 90 mm
Price for two pieces. Colours: Black ; Black & white 3 way Bass-reflex system Power - 160 W Impedance - 8 Ω Sensitivity - 88 dB Frequency response - 28 Hz - 35 kHz Woofer 1 x 220 mm Midrange 1 x 115 mm Tweeter 1 x 90 mm
Price for two pieces. Colours: Black ; Black & white ; Walnut ; Wenge ; 3 way Bass-reflex system Power - 140 W Impedance - 8 Ω Sensitivity - 89 dB Frequency response - 39 Hz - 35 kHz Woofer 2 x 150 mm Midrange 1 x 150 mm Tweeter 1 x 90 mm
Price for two pieces. Colours: Black ; Black & white ; White ; Walnut ; Wenge ; 3 way Bass-reflex system Power - 200 W Impedance - 8 Ω Sensitivity - 90 dB Frequency response - 29 Hz - 35 kHz Woofer 2 x 180 mm Midrange 1 x 115 mm Tweeter 1 x 90 mm
Cena dotyczy 2szt. kolumn ze wzmacniaczem Kolory: biały, czarno - biały, orzech, wenge, czarny Konstrukcja trójdrożna Bass-reflex Moc - 200 W Impedancja - 8 Ω Efektywność - 90 dB Pasmo przenoszenia - 29 Hz - 35 kHz Głośnik niskotonowy 2 x 180 mm Głośnik średniotonowy 120 mm Głośnik wysokotonowy 1 x 90 mm
Price for two pieces. Colours: Black ; Black & white ; White ; Walnut ; Wenge ; 3 way Bass-reflex system Power - 360 W Impedance - 8 Ω Sensitivity - 93 dB Frequency response - 22 Hz - 30 kHz Woofer 2 x 270 mm Midrange 1 x 180 mm Tweeter 1 x 104 mm
Price for two pieces. Colours: Black ; Black & white ; White ; Light oak ; Walnut ; Wenge 3 way Bass-reflex system Power - 250 W Impedance - 8 Ω Sensitivity - 90 dB Frequency response - 25 Hz - 35 kHz Woofer 2 x 180 mm Midrange 1 x 115 mm Tweeter 1 x 90 mm
Price for two pieces. Colours: Black ; Black & white ; White ; Walnut ; Wenge 3 way Bass-reflex system Power - 300 W Impedance - 8 Ω Sensitivity - 90 dB Frequency response - 23 Hz - 39 kHz Woofer 2 x 180 mm Midrange 1 x 115 mm Tweeter 1 x 90 mm
Price for two pieces. Colours: Black ; Black & white ; Walnut ; Wenge 2 way Bass-reflex system Power - 900 W Impedance - 4 Ω Sensitivity - 97 dB Frequency response - 21 Hz - 24 kHz Woofer 2 x 320 mm Tweeter 1 x 200 mm
Price for two pieces. Colours: Black ; Black & white ; White ; Walnut ; Wenge ; Murano walnut 2 way Bass-reflex system Power - 100 W Impedance - 8 Ω Sensitivity - 86 dB Frequency response - 36 Hz - 41 kHz Woofer 1 x 150 mm Tweeter 1 x 104 mm
STX Spider R-112-37-6 Material: cloth Outer diameter (A): 112 mm Inner diameter (B): 37 mm Height (C): 6 mm
Price for two pieces. Integrated power amplifier 2x60 W with remote Colours: Black ; Black & white ; White ; Walnut ; Wenge ; Murano walnut 2 way Bass-reflex system Power - 100 W Impedance - 8 Ω Sensitivity - 86 dB Frequency response - 36 Hz - 41 kHz Woofer 1 x 150 mm Tweeter 1 x 104 mm
STX Spider R-113-27-2 Material: cloth Outer diameter (A): 113 mm Inner diameter (B): 27 mm Height (C): 2 mm
STX Spider R-113-49-3 Material: cloth Outer diameter (A): 113 mm Inner diameter (B): 49 mm Height (C): 3 mm
STX Spider R-114-39-8 Material: cloth Outer diameter (A): 114 mm Inner diameter (B): 39 mm Height (C): 8 mm
Ferrite magnet M-120-60-25 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 120 mm Internal diameter - 60 mm Height - 25 mm
STX Spider R-127-36-0 Material: cloth Outer diameter (A): 127 mm Inner diameter (B): 36 mm Height (C): 0 mm
STX Spider R-134-36-0 Material: cloth Outer diameter (A): 134 mm Inner diameter (B): 36 mm Height (C): 0 mm
STX Spider R-135-50-0 Material: cloth Outer diameter (A): 165 mm Inner diameter (B): 50 mm Height (C): 0 mm
STX Spider R-137-50-7 Material: cloth Outer diameter (A): 137 mm Inner diameter (B): 50 mm Height (C): 7 mm
STX Spider R-140-38-0 Material: cloth Outer diameter (A): 140 mm Inner diameter (B): 38 mm Height (C): 0 mm
STX Spider R-140-50-0 Material: cloth Outer diameter (A): 140 mm Inner diameter (B): 50 mm Height (C): 0 mm
Ferrite magnet M-140-60-25 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 140 mm Internal diameter - 60 mm Height - 25 mm
STX Spider R-150-49-7 Material: cloth Outer diameter (A): 150 mm Inner diameter (B): 49 mm Height (C): 7 mm
STX Spider R-152-37-3 Material: cloth Outer diameter (A): 152 mm Inner diameter (B): 37 mm Height (C): 3 mm
STX Spider R-152-49-3 Material: cloth Outer diameter (A): 152 mm Inner diameter (B): 49 mm Height (C): 3 mm
Ferrite magnet M-160-60-25 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 160 mm Internal diameter - 60 mm Height - 25 mm
STX Spider R-166-49-5 Material: cloth Outer diameter (A): 166 mm Inner diameter (B): 49 mm Height (C): 5 mm
STX Spider R-176-76-14 Material: cloth Outer diameter (A): 176 mm Inner diameter (B): 76 mm Height (C): 14 mm
STX Spider R-178-50-0 Material: cloth Outer diameter (A): 178 mm Inner diameter (B): 50 mm Height (C): 0 mm
STX Spider R-178-50-13 Material: cloth Outer diameter (A): 178 mm Inner diameter (B): 50 mm Height (C): 13 mm
STX Spider R-178-76-0 Material: cloth Outer diameter (A): 178 mm Inner diameter (B): 76 mm Height (C): 0 mm
STX Spider R-178-100-0 Material: cloth Outer diameter (A): 178 mm Inner diameter (B): 100 mm Height (C): 0 mm
STX Spider R-178-100-10 Material: cloth Outer diameter (A): 178 mm Inner diameter (B): 100 mm Height (C): 10 mm
Ferrite magnet M-180-90-25 Technical data: Type - ferrite magnet Energy class - Y-35 Outer diameter - 180 mm Internal diameter - 90 mm Height - 25 mm
STX Spider R-185-50-9 Material: cloth Outer diameter (A): 185 mm Inner diameter (B): 50 mm Height (C): 9 mm
STX Spider R-185-76-13 Material: cloth Outer diameter (A): 185 mm Inner diameter (B): 76 mm Height (C): 13 mm
STX Spider R-185-100-0 Material: cloth Outer diameter (A): 185 mm Inner diameter (B): 100 mm Height (C): 0 mm
STX Spider R-185-100-8 Material: cloth Outer diameter (A): 185 mm Inner diameter (B): 100 mm Height (C): 8 mm
STX Spider R-186-50-0 Material: cloth Outer diameter (A): 186 mm Inner diameter (B): 50 mm Height (C): 0 mm
STX Spider R-186-76-0 Material: cloth Outer diameter (A): 186 mm Inner diameter (B): 76 mm Height (C): 0 mm
STX Spider R-187-49-5 Material: cloth Outer diameter (A): 187 mm Inner diameter (B): 49 mm Height (C): 5 mm
STX Spider R-189-50-0 Material: cloth Outer diameter (A): 189 mm Inner diameter (B): 50 mm Height (C): 0 mm
STX Spider R-190-49-7 Material: cloth Outer diameter (A): 190 mm Inner diameter (B): 49 mm Height (C): 7 mm
STX Spider R-190-50-9 Material: cloth Outer diameter (A): 190 mm Inner diameter (B): 50 mm Height (C): 9 mm
STX Spider R-190-76-0 Material: cloth Outer diameter (A): 190 mm Inner diameter (B): 76 mm Height (C): 0 mm
STX Spider R-190-76-13 Material: cloth Outer diameter (A): 190 mm Inner diameter (B): 76 mm Height (C): 13 mm
