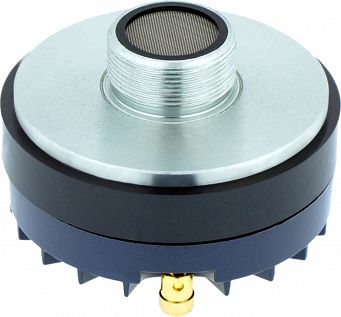

Compression Driver Voice coil diameter - 35 mm Throat diameter - 1" Diameter 91 mm Power - 500 W Impedance - 8 Ω SPL - 107 dB Fs - 1350 Hz Dome material - titanium
Compression Driver Voice coil diameter - 44 mm Throat diameter - 1" Diameter 116 mm Power - 800 W Impedance - 8 Ω SPL - 109 dB Fs - 900 Hz Dome material - titanium
Compression Driver Voice coil diameter - 50 mm Throat diameter - 1" Diameter 135 mm Power - 1000 W Impedance - 8 Ω SPL - 108 dB Fs - 900 Hz Dome material - titanium
Compression tweeter Voice coil diameter - 36 mm Diameter 115 mm Power - 800 W Impedance - 8 Ω SPL - 106 dB Fs - 3200 Hz Dome material - aluminum
Compression tweeter Voice coil diameter - 25 mm Diameter 107 mm Power - 250 W Impedance - 8 Ω SPL - 104 dB Fs - 1570 Hz Dome material - phenolic
Compression tweeter Voice coil diameter - 25 mm Diameter 87 x 87 mm Power - 250 W Impedance - 8 Ω SPL - 104 dB Fs - 1550 Hz Dome material - phenolic
Compression tweeter Voice coil diameter - 25 mm Diameter 188 x 78 mm Power - 250 W Impedance - 8 Ω SPL - 104 dB Fs - 1550 Hz Dome material - phenolic
Full range PA Driver Diameter - 305 mm Power - 300 W Voice coil diameter - 50 mm Impedance - 8 Ω SPL - 94 dB Fs - 55 Hz Qts - 1,51 Vas - 57 L Cone material - Modified Cellulose Recommended enclosure - 50 L closed
Głośnik szerokopasmowy Średnica - 321 mm Moc - 400 W Impedancja - 8 Ω Efektywność - 96 dB Fs - 56 Hz Qts - 0,73 Vas - 82 L Materiał membrany - celuloza modyfikowana Zalecana obudowa - Bass - Reflex 45L @ 60 Hz lub obudowa zamknięta 40 L
PA midwoofer Driver Diameter - 255 mm Power - 300 W Voice coil diameter - 50 mm Impedance - 8 Ω SPL - 95 dB Fs - 65 Hz Qts - 0,68 Vas - 32 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 45 L @ 55 Hz or 30 L closed
PA midwoofer Driver Diameter - 260 mm Power - 400 W Voice coil diameter - 50 mm Impedance - 8 Ω SPL - 98 dB Fs - 54 Hz Qts - 0,28 Vas - 50 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 40 L @ 60 Hz or 7 L closed (midrange application)
PA Midwoofer Driver Diameter - 305 mm Power - 300 W Voice coil diameter - 50 mm Impedance - 4 Ω SPL - 95 dB Fs - 50 Hz Qts - 0,75 Vas - 88 L Cone material - Modified Cellulose Recommended enclosure - 40 L closed
PA Midwoofer Driver Diameter - 305 mm Power - 300 W Voice coil diameter - 50 mm Impedance - 8 Ω SPL - 94 dB Fs - 34 Hz Qts - 0,59 Vas - 136 L Cone material - Modified Cellulose Recommended enclosure - 40 L closed
PA Midwoofer Driver Diameter - 321 mm Power - 400 W Voice coil diameter - 50 mm Impedance - 8 Ω SPL - 96 dB Fs - 55 Hz Qts - 0,72 Vas - 81 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 45 L @ 60 Hz or 40 L Closed
PA Midwoofer Driver Diameter - 313 mm Power - 500 W Voice coil diameter - 50 mm Impedance - 8 Ω SPL - 99 dB Fs - 53 Hz Qts - 0,31 Vas - 78 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 45 L @ 55 Hz
PA Midwoofer Driver Diameter - 314 mm Power - 750 W Voice coil diameter - 75 mm Impedance - 8 Ω SPL - 96,5 dB Fs - 47 Hz Qts - 0,37 Vas - 57 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 50 L @ 50 Hz
PA Midwoofer Driver Diameter - 385 mm Power - 500 W Voice coil diameter - 50 mm Impedance - 4 Ω SPL - 97 dB Fs - 38 Hz Qts - 0,46 Vas - 196 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 80 L @ 40 Hz
PA Midwoofer Driver Diameter - 385 mm Power - 500 W Voice coil diameter - 50 mm Impedance - 8 Ω SPL - 98 dB Fs - 32 Hz Qts - 0,41 Vas - 315 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 80 L @ 40 Hz
PA Woofer / Subwoofer Driver Diameter - 388 mm Power - 800 W Voice coil diameter - 75 mm Impedance - 4 Ω SPL - 96,5 dB Fs - 27 Hz Qts - 0,22 Vas - 272 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 90 L @ 40 Hz
PA Woofer / Subwoofer Driver Diameter - 388 mm Power - 800 W Voice coil diameter - 75 mm Impedance - 8 Ω SPL - 96,5 dB Fs - 28 Hz Qts - 0,24 Vas - 247 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 90 L @ 40 Hz
W.38.1200.8.MC Professional audio loudspeakersSubwooferOld name SW.STX.15.4.1200.8.F.S.MC . Optimal for PA subwoofer application . 15” nominal diameter . 1200 W Program Power . 600 W AES Power Handling . 8 Ohm Nominal impedance . 95 dB Sensitivity . 4” Voice coil . Water protected cone . Voice coil former material - aluminum . High mechanical displacement range . High stability steel basket . Ventilated voice coil gap for reduced power compression STX zastrzega sobie prawo do zmian danych technicznych. Instrukcja obsługi
PA Subwoofer Driver Diameter - 465 mm Power - 1300 W Voice coil diameter - 100 mm Impedance - 8 Ω SPL - 98 dB Fs - 36 Hz Qts - 0,32 Vas - 164 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 120 L @ 35 Hz

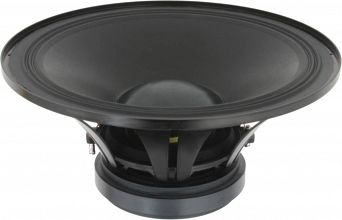

PA Subwoofer Driver Diameter - 465 mm Power - 1400 W Voice coil diameter - 100 mm Impedance - 8 Ω SPL - 98 dB Fs - 30 Hz Qts - 0,27 Vas - 269 L Cone material - Modified Cellulose Recommended enclosure - Bass - Reflex 150 L @ 35 Hz
