Bass-Reflex port 54x114 Dimensions:A - 54 mm B - 114 mm C - 46 mm D - 32 mm E - 2,0 mm Material - polypropylene
Bass-reflex port 73x107 Dimensions:A - 73,5 mm B - 107 mm C - 63 mm D - 43 mm E - 1,9 mm Material - polypropylene

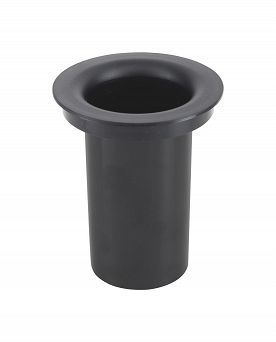

STX Bass-reflex port 99x115 Material - Polypropylene Overall diameter 98,5 mm Overall length 110 mm Diameter in the middle of the tunnel 58 mm Profiled tunnel outlet to minimize turbulence Standard colors Black, White, Graphite metallic Other color available on request (minimum 1000 pcs.)
STX Bass-Reflex port 123x125 Material - Polypropylene Overall diameter 123 mm Overall length 125 mm Diameter in the middle of the tunnel 82 mm Profiled tunnel outlet to minimize turbulence Standard colors Black, White, Silver Other colors available on request (min 500 pcs.)

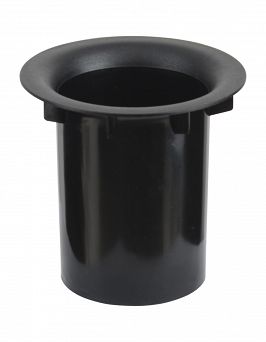

Bass-reflex port 157x154 Dimensions: A - 157 mm B - 154 mm C - 141 mm D - 102 mm E - 2,5 mm Material - polypropylene

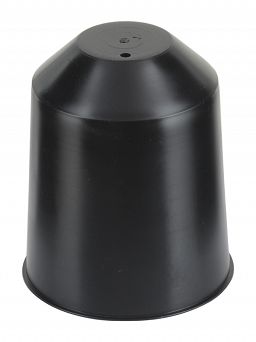

STX Midrange chamber Technical data: Midrange speaker chamber For models M.11.100.8.MC, M.STX.4.1.100.8.F.S.MC or others with suitable dimensions Overall diameter 103 mm Mounting hole diameter 99 mm Speaker hole diameter 95 mm Material - Polypropylene Weight 70g without packaging STX reserves the right to change technical data.
