Woofer cone driver W.32.500.8.MC_v2





W.32.500.8.MC_v2

Key features:

  • Optimal for 3 way application

  • 12" nominal diameter

  • 2" nominal coil diameter

  • 500 W Max recommended amplifier power

  • 500 W Program Power

  • 300 W AES Power Handling

  • 8 Ohm Nominal impedance

  • 93 dB Sensitivity

  • High linear displacement range

  • High mechanical displacement range

  • Ventilated voice coil gap for reduced power compression

  • Modified Cellulose Cone

  • Voice coil former material - Aluminum

  • Voice coil material - self bonding copper wire

  • High stability steel basket

  • Ferrite magnet

  • Recommended enclosure: Bass - Reflex 50 L @ 35 Hz





W.32.500.8.MC_v2

Parameters:

  • Nominal impedance - 8 Ohm

  • Program Power - 500 W (25 - 3 000 Hz)

  • Power Handling AES - 300 W (25 - 3 000 Hz)

  • Sensitivity (2,83 V / 1 m.) - 93 dB

  • Fs - 24 Hz

  • Re - 5,6 Ohm

  • Qms - 2,48

  • Qes - 0,30

  • Qts - 0,27

  • Cms - 0,59 mm/N

  • Mms - 76 g

  • BL - 14,5 T.m

  • Vas - 199 L

  • L 1kHz - 1,27 mH

  • L 10 kHz - 0,47 mH

  • SD - 0,0491 m2

  • Eta - 0,85 %

  • Voice coil diameter - 50 mm

  • Max. linear excursion - 15 mm (p-p)

  • Mechanical displacement range - 40 mm (p-p)



Frequency response:

W.32.500.8.MC Frequency response

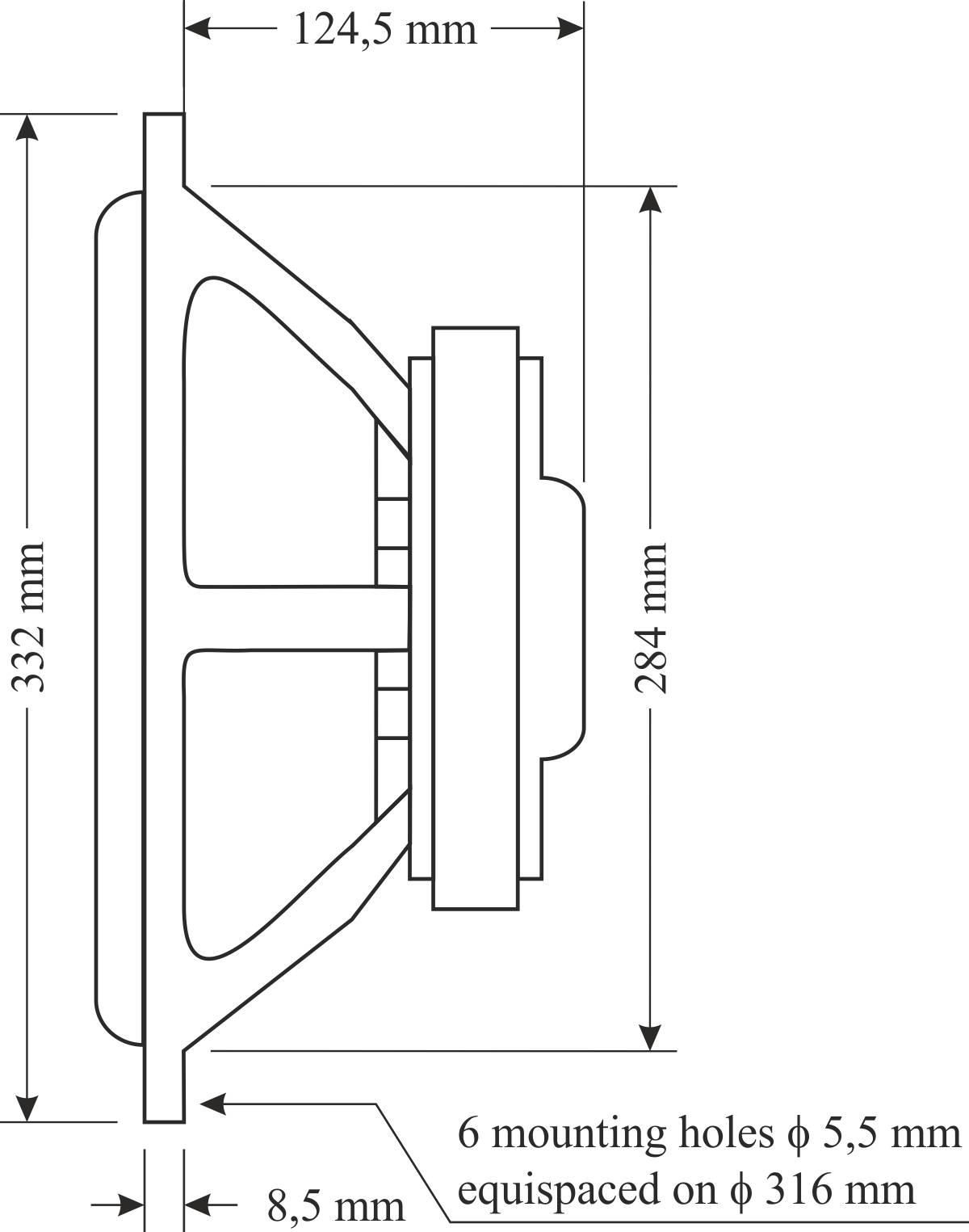

W.32.500.8.MC_v2 dimension









Materials:

  • Magnet - Ferrite

  • Basket/panel - Steel

  • Diaphragm - Modified Cellulose











Dimension:

  • Overall diameter - 332 mm

  • Baffle cut-out diameter - 284 mm

  • Mounting holes diameter - 5,5 mm

  • Bolt circle diameter - 316 mm

  • Overall depth - 133 mm

  • Netto weight - 4 kg









STX reserves the right to change technical data.



Diameter - 332 mm     Power - 500 W     Impedance - 8 Ω     SPL - 93 dB     Fs - 24 Hz     Qts - 0,27     Vas - 199 L     Cone material  - Modified Cellulose     Recommended enclosure - Bass - Reflex 50 L @ 35 Hz
