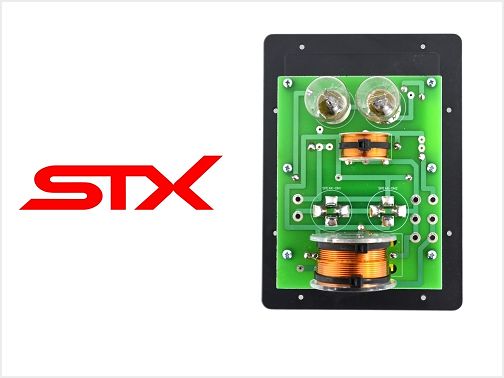

STX crossover W.30.500.8.MC + D.12.800.8.TI

  • Obserwuj produkt:
  • Add feedback:
  • Code: 1547
  • Manufacturer: STX
  • Manufacturer's code: 5903726502344
  • Availability: Exists
  • pcs.
  • €48.89 / pcs.





STX crossover W.30.500.8.MC + D.12.800.8.TI



  • Crossover dedicated for speakers: W.30.500.8.MC ; D.12.800.8.TI ; Horn 318x150



  • Crossover with speaker terminal  - without speaker cables



STX Crossover W.30.500.8.MC + D.12.800.8.TI



Technical data:



  • External dimensions: 180 x 130 mm



  • Mounting hole dimensions: 148x98 mm



  • Two Speak-on terminals



  • Material: Polystyrene













STX Crossover W.30.500.8.MC + D.12.800.8.TI





Parts list:



  • Z1 - Light bulb 12 V / 21 + 5 W (fibers connected parallel)

  • Z2 - Light bulb 12 V / 21 + 5 W (fibers connected in parallel)

  • R1 - Ceramic resistor 8,2 Ω ; 20 W

  • C1 - Film capacitor PET 2,7 uF ; 100 V

  • C2 - Film capacitor PET 10 uF ; 100 V

  • C3 - Film capacitor PET 22 uF ; 100 V

  • L1 - Air coil 0,4 mH ~ 0,4 Ω

  • L2 - Core coil 1,2 mH ~ 0,3 Ω





































Schematic diagram:



STX Crossover W.30.500.8.MC + D.12.800.8.TI



Speakers connecting :



STX Crossover W.30.500.8.MC + D.12.800.8.TI



































Recommended enclosure:



  • Material - MDF board 19 mm



  • External dimensions [HxWxD] - 600 mm x 350 mm x 320 mm



  • Internal volume 45 l



  • Bass-reflex tuning frequency 55 Hz



  • Bass-reflex dimensions - 312 mm x 40 mm length 180 mm

Enclosure technical drawing:



STX Crossover W.30.500.8.MC + D.12.800.8.TI

















































Crossover dedicated for speakers: W.30.500.8.MC ; D.12.800.8.TI ; Horn 318x150

Crossover with speaker terminal  - without speaker cables
