STX crossover W.30.300.8.MC + T.18.250.8.PH

  • Obserwuj produkt:
  • Add feedback:
  • Code: 1551
  • Manufacturer: STX
  • Manufacturer's code: 5903726502382
  • Availability: Exists
  • pcs.
  • €48.33 / pcs.

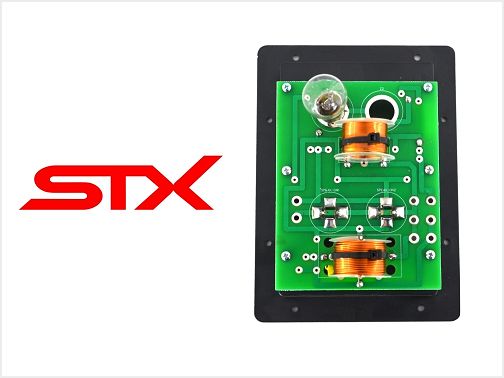

STX crossover W.30.300.8.MC + T.18.250.8.PH



  • Crossover dedicated for speakers: W.30.300.8.MC ; T.18.250.8.PH



  • Crossover with speaker terminal  - without speaker cables



STX Crossover W.30.300.8.MC + T.18.250.8.PH



Technical data:



  • External dimensions: 180 x 130 mm



  • Mounting hole dimensions: 148x98 mm



  • Two Speak-on terminals



  • Material: Polystyrene













STX Crossover W.30.300.8.MC + T.18.250.8.PH





Parts list:



  • Z1 - Light bulb 12 V / 21 + 5 W (fibers connected parallel)



  • C1 - Film capacitor PET 1,5 uF ; 100 V



  • L1 - Air coil 0,4 mH ~ 0,4 Ω



  • L2 - Core coil 0,3 mH ~ 0,3 Ω





































Schematic diagram:



STX Crossover W.30.300.8.MC + T.18.250.8.PH



Speakers connecting :



STX Crossover W.30.300.8.MC + T.18.250.8.PH



































Recommended enclosure:



  • Material - MDF board 19 mm



  • External dimensions [HxWxD] - 560 mm x 350 mm x 300 mm



  • Internal volume 40 l



  • Bass-reflex tuning frequency 50 Hz



  • Bass-reflex dimensions - 312 mm x 35 mm length 240 mm

Enclosure technical drawing:



STX Crossover W.30.300.8.MC + T.18.250.8.PH

















































Crossover dedicated for speakers: W.30.300.8.MC ; T.18.250.8.PH

Crossover with speaker terminal  - without speaker cables
