Midwoofer cone driver W.30.500.8.MC v2





W.30.500.8.MC v2

Key features:

  • Optimal for 2 way PA application

  • 12" nominal diameter

  • 2" nominal coil diameter

  • 500 W Max recommended amplifier power

  • 500 W Program Power

  • 250 W AES Power Handling

  • 8 Ohm Nominal impedance

  • 99 dB Sensitivity

  • Ventilated voice coil gap for reduced power compression

  • Modified Cellulose Cone

  • Voice coil former material - Aluminum

  • Voice coil material - self bonding copper wire

  • High stability steel basket

  • Ferrite magnet

  • Recommended enclosure: Bass - Reflex 45 L @ 55 Hz





W.30.500.8.MC v2

Parameters:

  • Nominal impedance - 8 Ohm

  • Program Power - 500 W (50 - 5 000 Hz)

  • Power Handling AES - 250 W (50 - 5 000 Hz)

  • Sensitivity (2,83 V / 1 m.) - 99 dB

  • Fs - 53 Hz

  • Re - 5,6 Ohm

  • Qms - 3,15

  • Qes - 0,35

  • Qts - 0,31

  • Cms - 0,20 mm/N

  • Mms - 45 g

  • BL - 15,6 T.m

  • Vas - 78 L

  • L 1kHz - 0,97 mH

  • L 10 kHz - 0,39 mH

  • SD - 0,0530 m2

  • Eta - 3,30 %

  • Voice coil diameter - 50 mm

  • Max. linear excursion - 11 mm (p-p)

  • Mechanical displacement range - 35 mm (p-p)

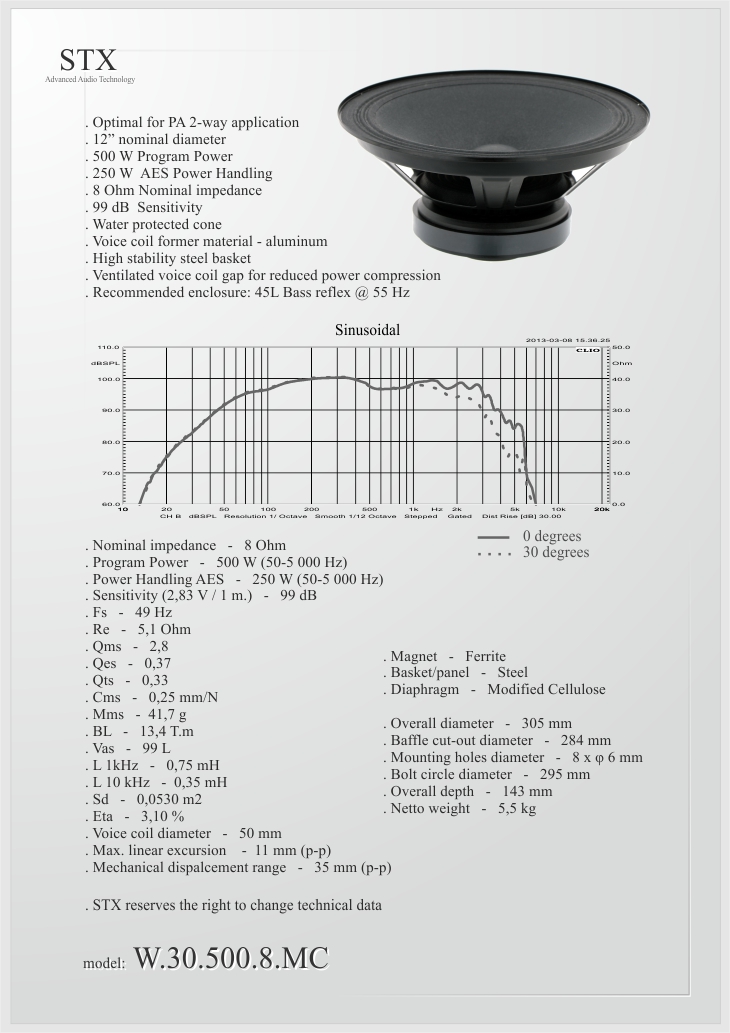

Frequency response:

W.30.500.8.MC v2 Frequency response

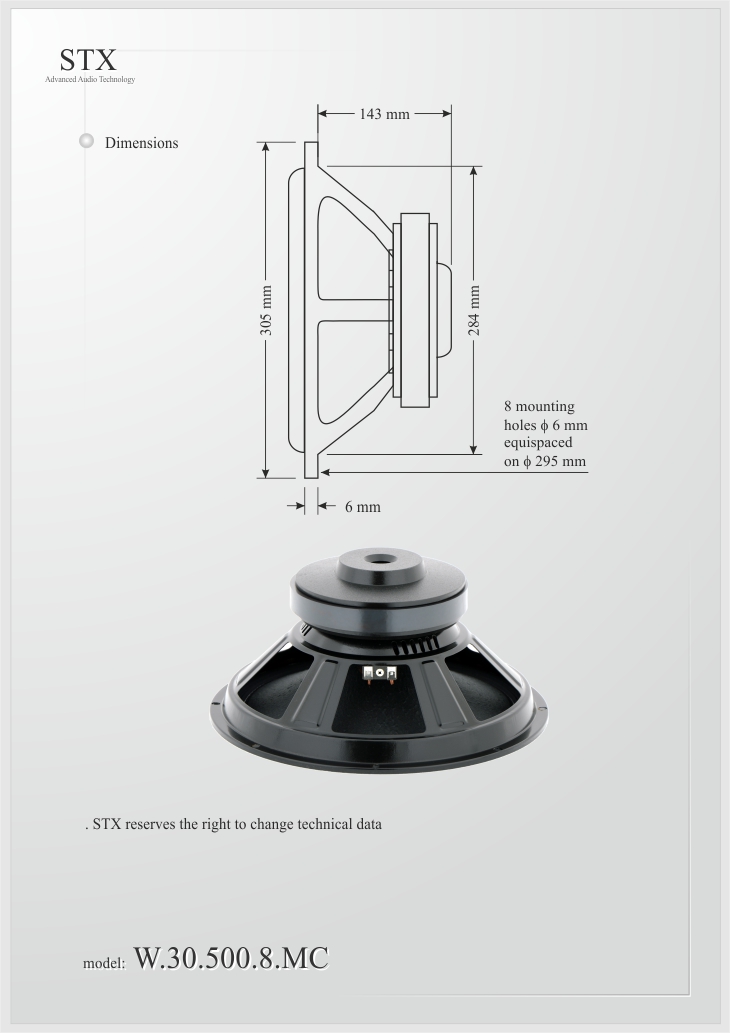

W.30.500.8.MC v2 dimension









Materials:

  • Magnet - Ferrite

  • Basket/panel - Steel

  • Diaphragm - Modified Cellulose











Dimension:

  • Overall diameter - 313 mm

  • Baffle cut-out diameter - 281 mm

  • Mounting holes diameter - 6,5 mm

  • Bolt circle diameter - 300 mm

  • Overall depth - 142 mm

  • Netto weight - 5,5 kg









STX reserves the right to change technical data.



PA Midwoofer Driver      Diameter - 313 mm     Power - 500 W     Voice coil diameter - 50 mm     Impedance - 8 Ω     SPL - 99 dB     Fs - 53 Hz     Qts - 0,31     Vas - 78 L     Cone material  - Modified Cellulose     Recommended enclosure - Bass - Reflex 45 L @ 55 Hz
