Midwoofer cone driver W.25.400.8.MCX





W.25.400.8.MCX

Key features:

  • Optimal for PA 2 way application

  • 10" nominal diameter

  • 2" nominal coil diameter

  • 400 W Max recommended amplifier power

  • 400 W Program Power

  • 200 W AES Power Handling

  • 8 Ohm Nominal impedance

  • 98 dB Sensitivity

  • Ventilated voice coil gap for reduced power compression

  • Modified Cellulose Cone

  • Voice coil former material - Aluminum

  • Voice coil material - self bonding copper wire

  • High stability aluminium basket

  • Ferrite magnet

  • Recommended enclosure: Bass - Reflex 40 L @ 60 Hz or 7 L Closed (midrange application)

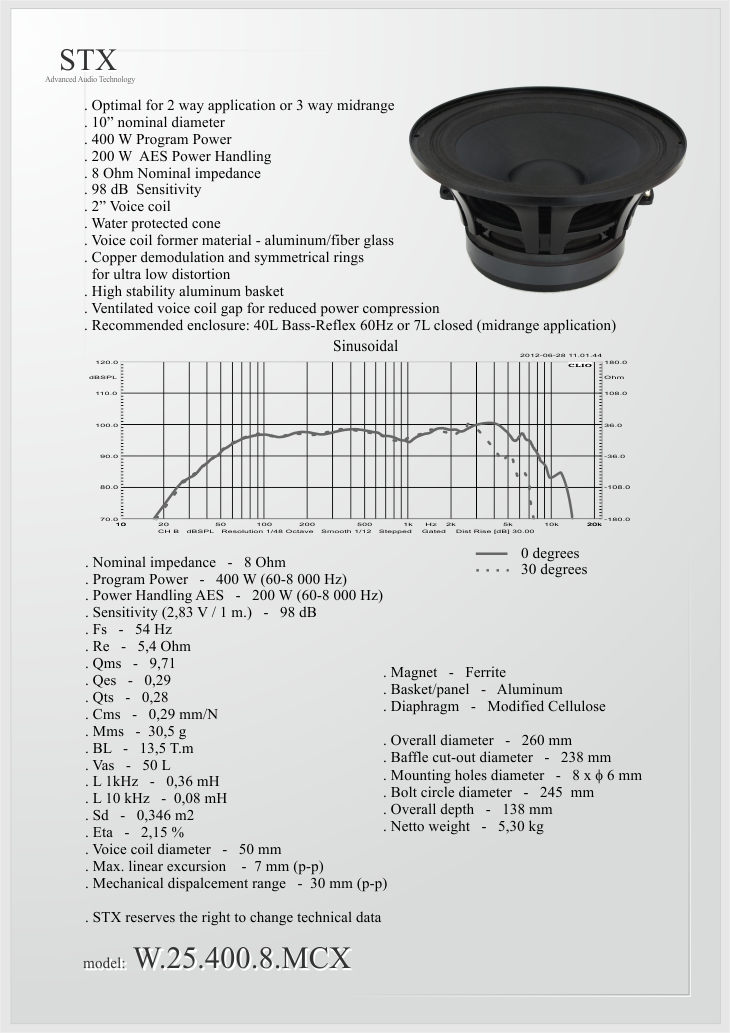

W.25.400.8.MCX

Parameters:

  • Nominal impedance - 8 Ohm

  • Program Power - 400 W (60 - 8 000 Hz)

  • Power Handling AES - 200 W (60 - 8 000 Hz)

  • Sensitivity (2,83 V / 1 m.) - 98 dB

  • Fs - 54 Hz

  • Re - 5,4 Ohm

  • Qms - 9,71

  • Qes - 0,29

  • Qts - 0,28

  • Cms - 0,29 mm/N

  • Mms - 30,5 g

  • BL - 13,5 T.m

  • Vas - 50 L

  • L 1kHz - 0,36 mH

  • L 10 kHz - 0,08 mH

  • SD - 0,0346 m2

  • Eta - 2,15 %

  • Voice coil diameter - 50 mm

  • Max. linear excursion - 7 mm (p-p)

  • Mechanical displacement range - 30 mm (p-p)



Frequency response:

W.25.400.8.MCX Frequency response

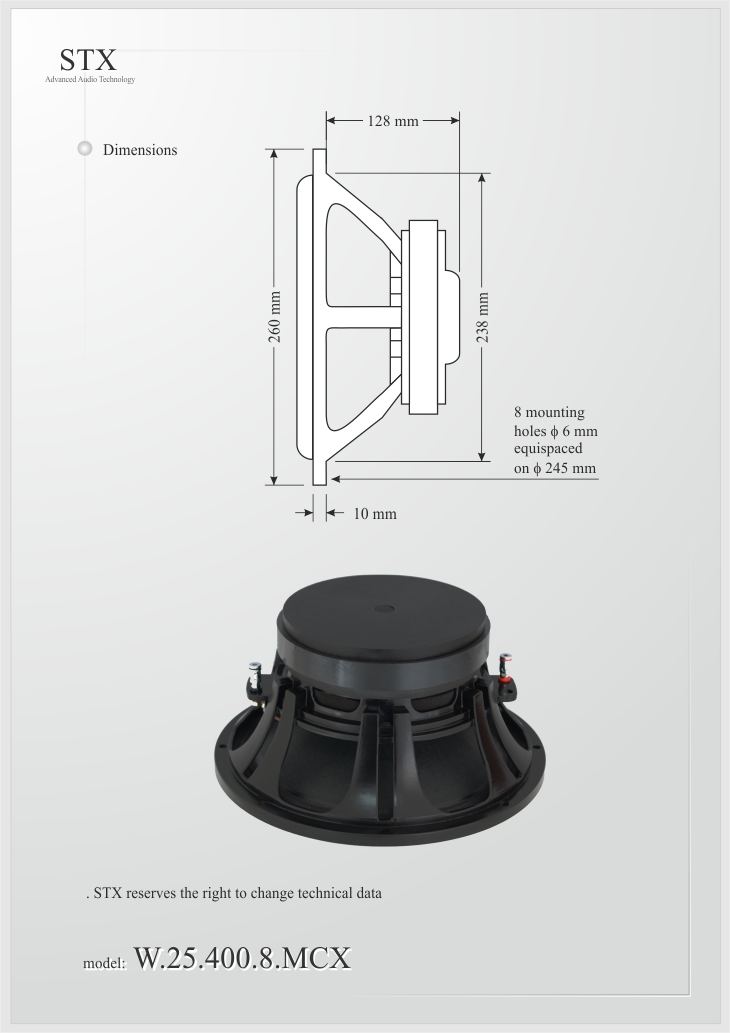

W.25.400.8.MCX dimension









Materials:

  • Magnet - Ferrite

  • Basket/panel - Aluminium

  • Diaphragm - Modified Cellulose











Dimension:

  • Overall diameter - 260 mm

  • Baffle cut-out diameter - 238 mm

  • Mounting holes diameter - 6 mm

  • Bolt circle diameter - 245 mm

  • Overall depth - 138 mm

  • Netto weight - 5,3 kg









STX reserves the right to change technical data.



PA midwoofer Driver      Diameter - 260 mm     Power - 400 W     Voice coil diameter - 50 mm     Impedance - 8 Ω     SPL - 98 dB     Fs - 54 Hz     Qts - 0,28     Vas - 50 L     Cone material  - Modified Cellulose     Recommended enclosure - Bass - Reflex 40 L @ 60 Hz  or 7 L closed (midrange application)
