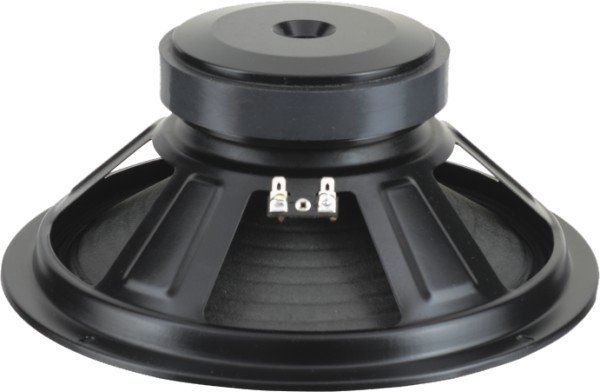

Midwoofer cone driver W.25.300.8.MC_v2





W.25.300.8.MC_v2

Key features:

  • Optimal for PA 2 way PA application

  • 10" nominal diameter

  • 2" nominal coil diameter

  • 300 W Max recommended amplifier power

  • 300 W Program Power

  • 150 W AES Power Handling

  • 8 Ohm Nominal impedance

  • 95 dB Sensitivity

  • Ventilated voice coil gap for reduced power compression

  • Modified Cellulose Cone

  • Voice coil former material - Aluminum

  • Voice coil material - self bonding copper wire

  • High stability steel basket

  • Ferrite magnet

  • Recommended enclosure: Bass - Reflex 45 L @ 55 Hz or 30 L Closed





W.25.300.8.MC_v2

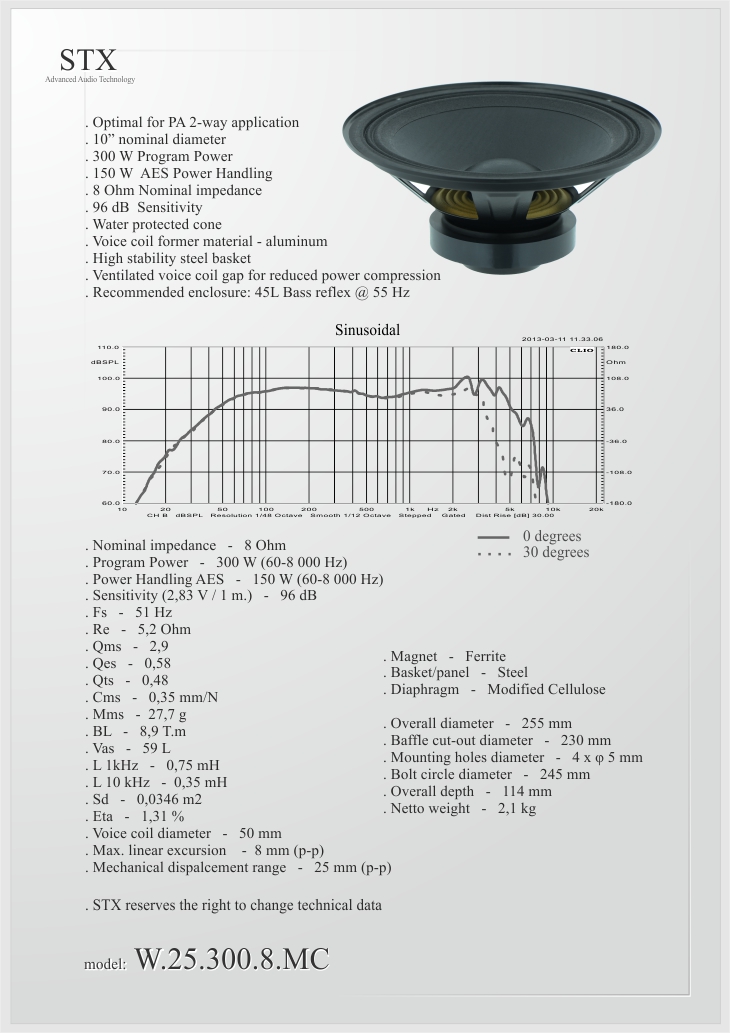

Parameters:

  • Nominal impedance - 8 Ohm

  • Program Power - 300 W (60 - 8 000 Hz)

  • Power Handling AES - 150 W (60 - 8 000 Hz)

  • Sensitivity (2,83 V / 1 m.) - 95 dB

  • Fs - 65 Hz

  • Re - 5,7 Ohm

  • Qms - 5,10

  • Qes - 0,78

  • Qts - 0,68

  • Cms - 0,19 mm/N

  • Mms - 32 g

  • BL - 9,7 T.m

  • Vas - 32 L

  • L 1kHz - 0,78 mH

  • L 10 kHz - 0,32 mH

  • SD - 0,0346 m2

  • Eta - 1,06 %

  • Voice coil diameter - 50 mm

  • Max. linear excursion - 8 mm (p-p)

  • Mechanical displacement range - 25 mm (p-p)

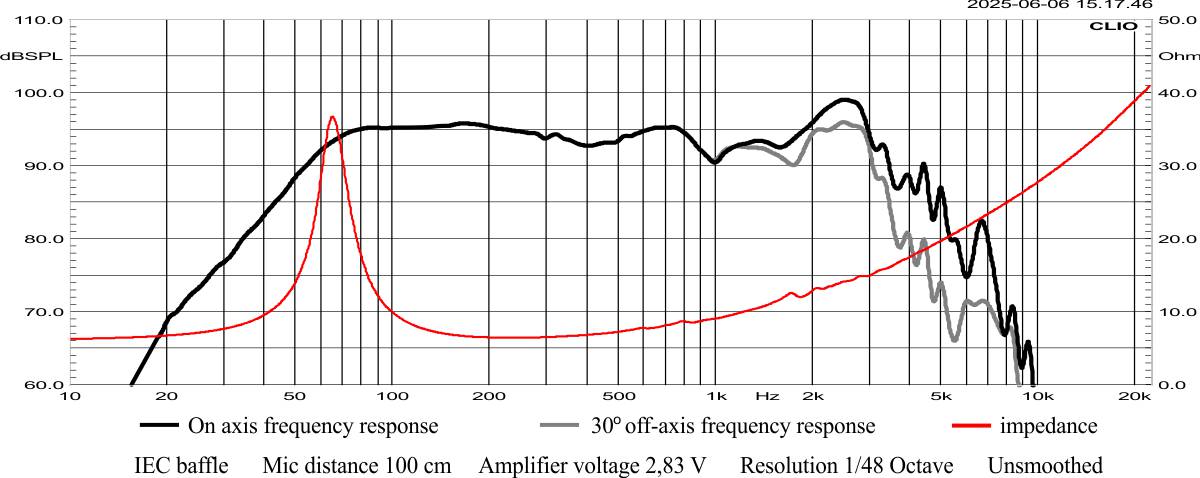

Frequency response:

W.25.300.8.MC_v2 Frequency response

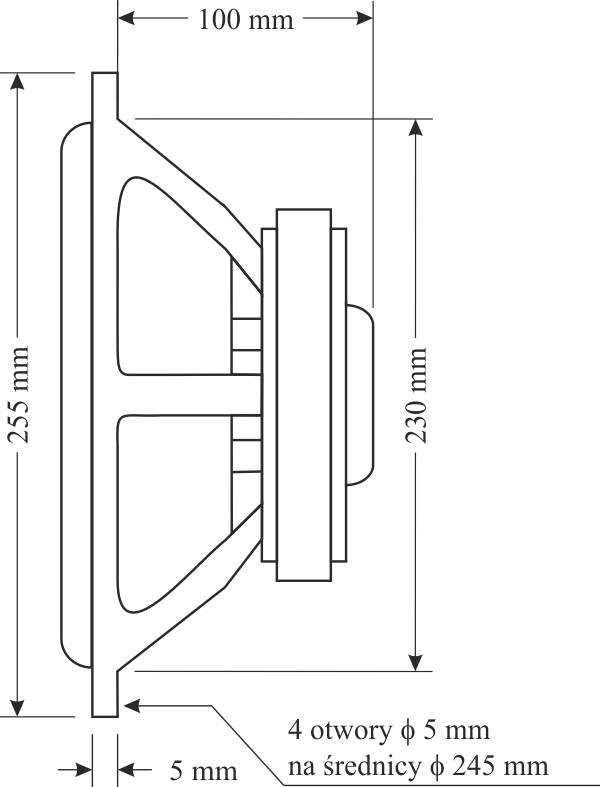

W.25.300.8.MC_v2 dimension









Materials:

  • Magnet - Ferrite

  • Basket/panel - Steel

  • Diaphragm - Modified Cellulose

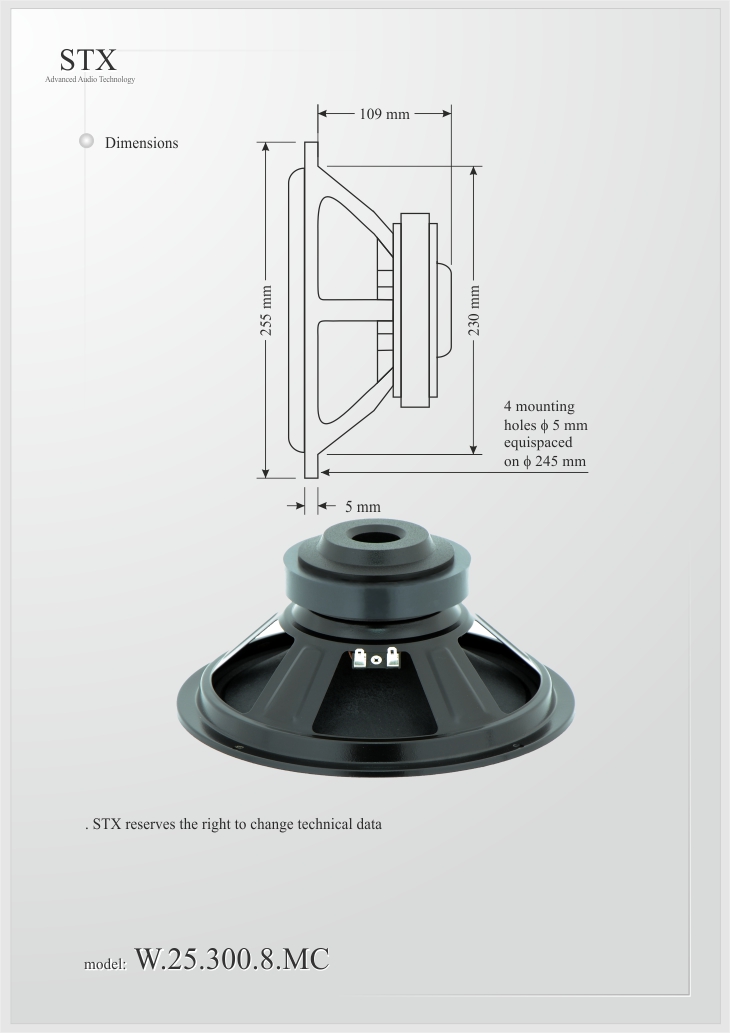

Dimension:

  • Overall diameter - 255 mm

  • Baffle cut-out diameter - 230 mm

  • Mounting holes diameter - 5 mm

  • Bolt circle diameter - 245 mm

  • Overall depth - 114 mm

  • Netto weight - 2,1 kg









STX reserves the right to change technical data.



PA midwoofer Driver      Diameter - 255 mm     Power - 300 W     Voice coil diameter - 50 mm     Impedance - 8 Ω     SPL - 95 dB     Fs - 65 Hz     Qts - 0,68     Vas - 32 L     Cone material  - Modified Cellulose     Recommended enclosure - Bass - Reflex 45 L @ 55 Hz or 30 L closed
