STX Quant 300

  • Obserwuj produkt:
  • Add feedback:
  • Code: 02092
  • Manufacturer: STX
  • Manufacturer's code: 5903726508094
  • Availability: Exists
  • set
  • €625.95 / set

Price for two pieces.

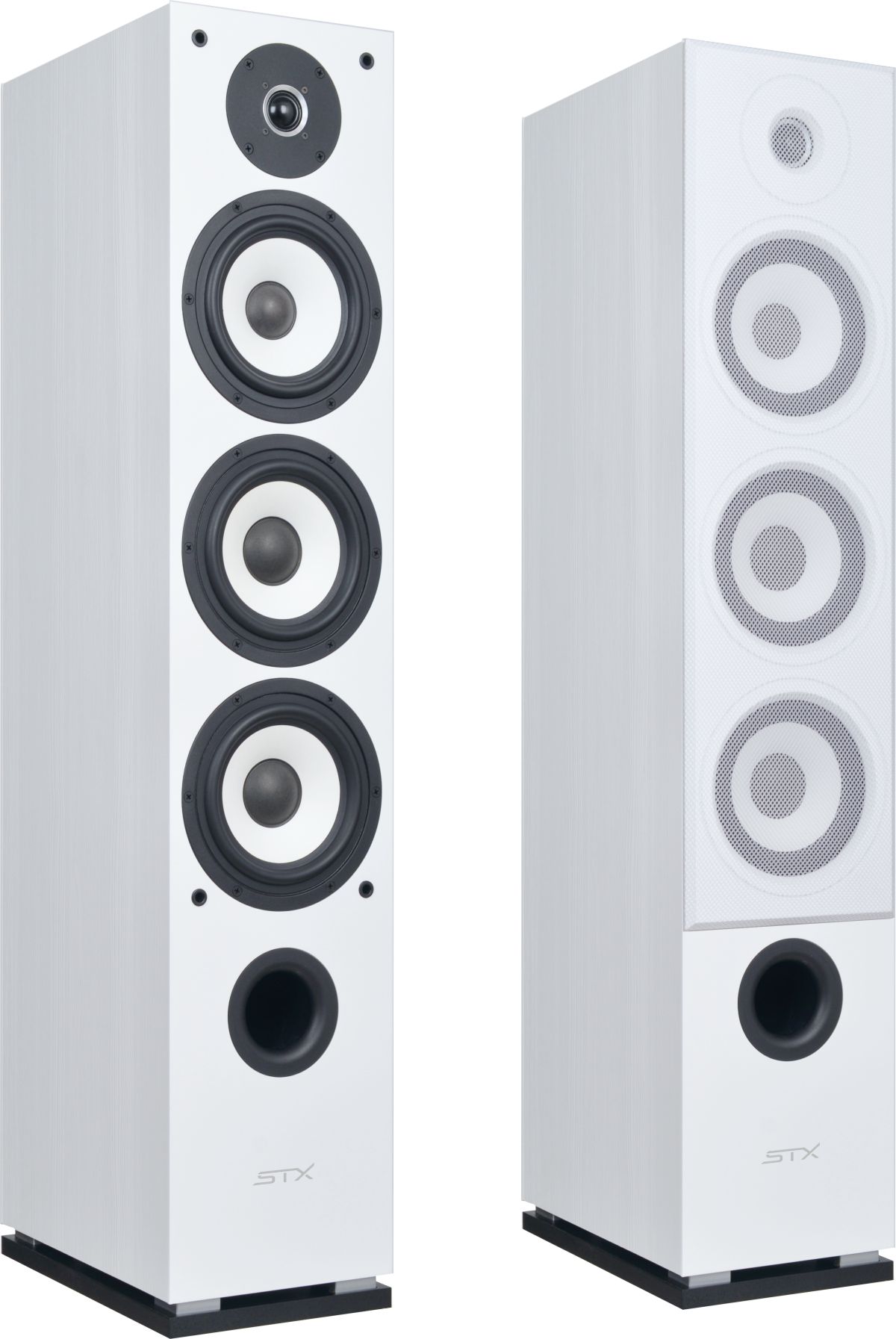

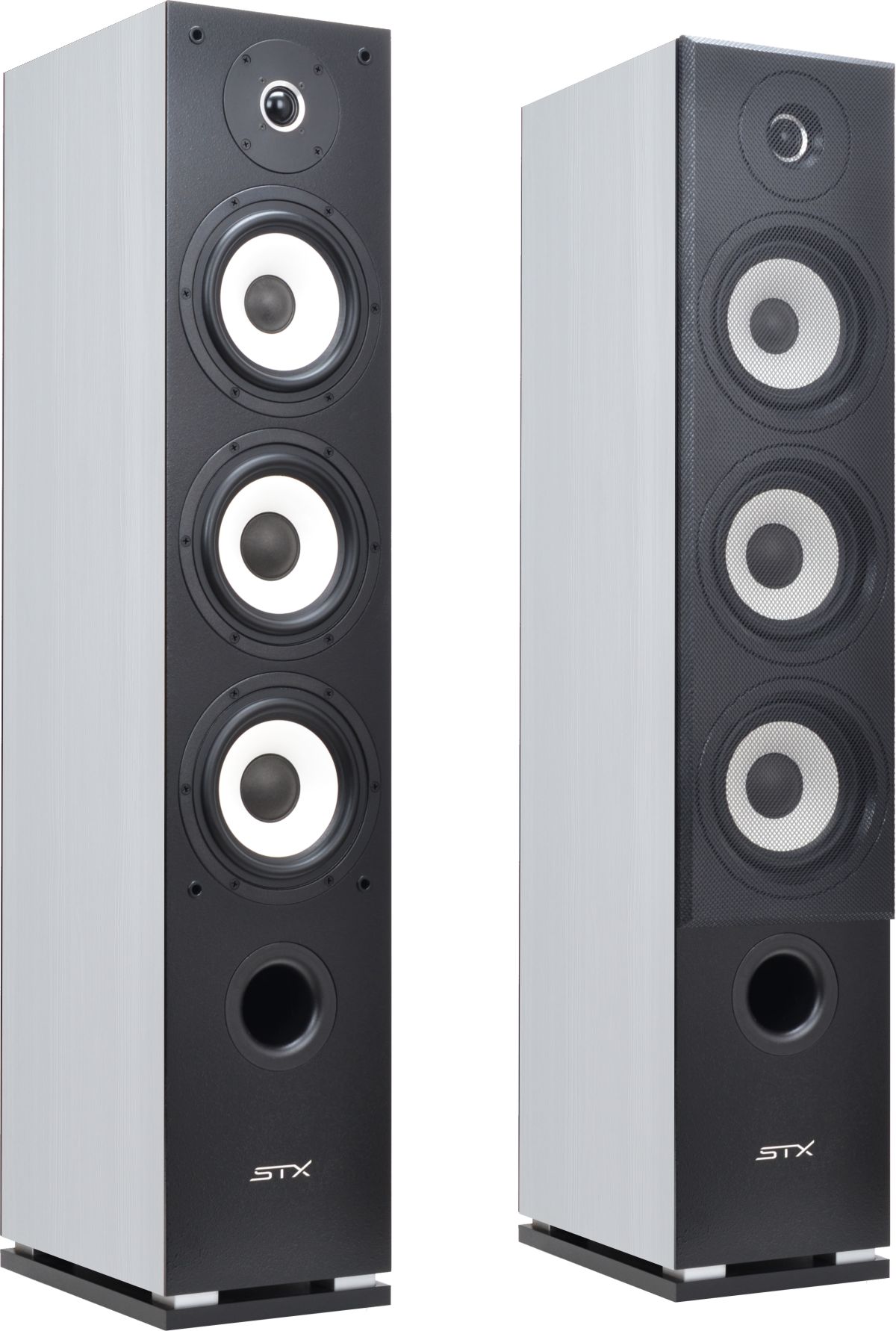

STX Quant 300 6,5" 3 way floor stand speakers





STX Quant 300 speakers



Technical Specifications:

System

3 way

Enclosure type

Bass-reflex

Peak Power

600 W

Music Power

300 W

Continous Power

150 W

Recommended amplifier power

30 - 300 W

Woofer

2 x 180 mm

Midrange

1 x 180 mm

Tweeter

1 x 104 mm

Nominal impedance

8 Ω

Sensitivity

91 dB (2,83 V / m)

Frequency response

20 Hz - 42 kHz (-10 dB)

Frequency response

36 Hz - 23 kHz (-3 dB)

Weight

~17 kg  / 1pcs.

Dimensions (H x W x D)

1040 x 200 x 300 mm

STX reserves the right to change technical data.



Quant 300STX Quant 300 speakers

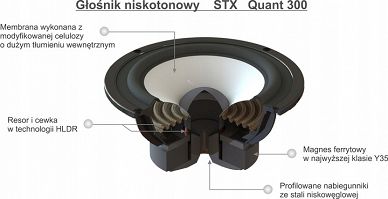

STX Quant 300 woofer key features:



  • High linear displacement range



  • High mechanical displacement range



  • Ventilated voice coil gap for reduced power compression



  • Modified Cellulose Cone







STX Quant 300 speakers

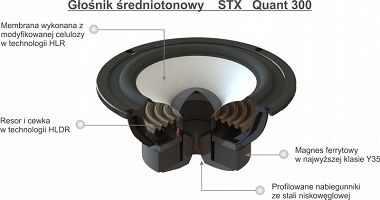

STX Quant 300 midrange key features:



  • Highly Linear frequency response



  • Ventilated voice coil gap for reduced power compression



  • Modified Cellulose Cone











STX Quant 300 speakers

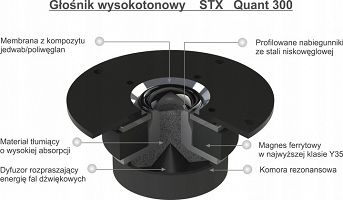

STX Quant 300 tweeter key features:



  • 1" nominal coil diameter



  • Copper demodulation ring



  • Modified silk diaphragm



  • Rear chamber with absorbing material



  • High stability aluminum panel







STX Quant 300 crossover





STX Quant 300 Crossover key features:



  • 3-way



  • High quality components



  • Excellent sound reproduction



  • Linear frequency response









STX Quant 300 enclosure















STX Quant 300 enclosure:



  • Modern design



  • Optimal sound wave damping



  • Laminated MDF material























STX Quant 300 terminal







Quant 300 speaker terminal key features:





  • Gold plated posted with gold plated red and black knobs



  • Accepts banana plugs or raw wire



  • Heavy duty ABS plastic housings to reduce vibrations













Price for two pieces.     Colours: Black ; White ; Wenge ; Gray      3 way Bass-reflex system     Power - 300 W     Impedance - 8 Ω     Sensitivity - 90 dB     Frequency response - 20 Hz - 42 kHz     Woofer 2 x 180 mm       Midrange 1 x 180 mm      Tweeter 1 x 104 mm
