Compression Driver  D.9.500.8.TI





D.9.500.8.TI

Key features:

  • Optimal for PA tweeter application

  • 1" Nominal throat diameter

  • 1,5" nominal coil diameter

  • 500 W Speaker system power /recommended minimum crossover frequency

  • 100 W Program Power

  • 50 W AES Power Handling

  • 8 Ohm Nominal impedance

  • 107 dB Sensitivity

  • Titanium diaphragm

  • Voice coil former material - fiberglass

  • Voice coil material - copper clad aluminum (CCAW)

  • Ferrite magnet

  • Recommended minimum crossover frequency: 1900 Hz / 18 dB / oct





D.9.500.8.TI

Parameters:

  • Nominal impedance - 8 Ohm

  • Program Power - 100 W (1900-23 000 Hz)

  • Power Handling AES - 50 W (1900-23 000 Hz)

  • Sensitivity (2,83 V / 1 m.) - 107 dB

  • Fs - 1350 Hz

  • Re - 6,4 Ohm

  • Qms - ...

  • Qes - ...

  • Qts - ...

  • Cms - ...

  • Mms - ...

  • BL - ...

  • Vas - ...

  • L 1kHz - ...

  • L 10 kHz - 0,12 mH

  • SD - ...

  • Eta - ...

  • Voice coil diameter - 35 mm

  • Max. linear excursion - 1,6 mm (p-p)

  • Mechanical displacement range - ...

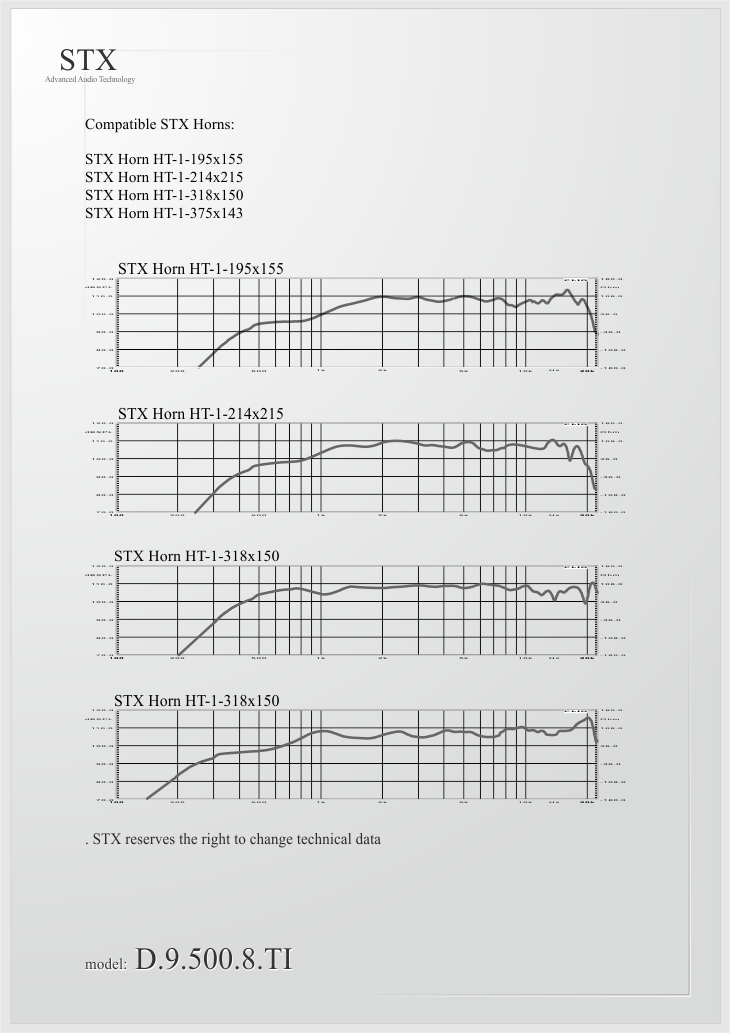

Frequency response:

D.9.500.8.TI Frequency response

D.9.500.8.TI Frequency response

D.9.500.8.TI Frequency response

D.9.500.8.TI Frequency response

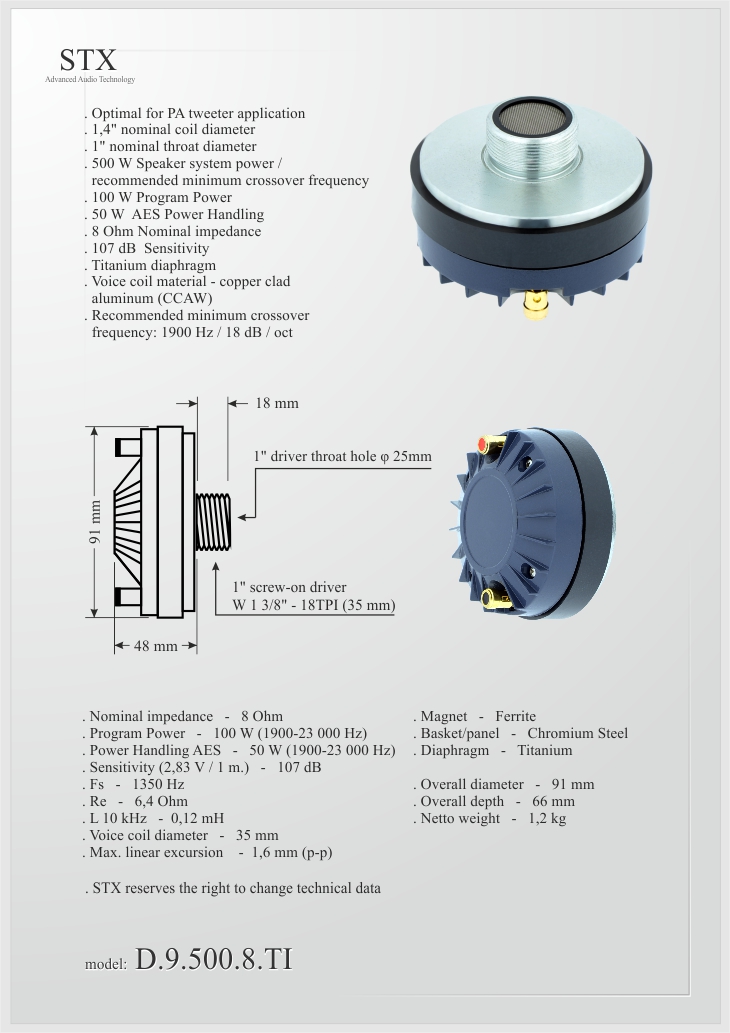

D.9.500.8.TI dimension









Materials:

  • Magnet - Ferrite

  • Basket/panel - ABS

  • Diaphragm - Titanium











Dimension:

  • Overall diameter - 91 mm

  • Baffle cut-out diameter - ...

  • Mounting holes diameter - ...

  • Bolt circle diameter - ...

  • Overall depth - 66 mm

  • Netto weight - 1,2 kg









STX reserves the right to change technical data.



Compression Driver     Voice coil diameter - 35 mm     Throat diameter - 1"      Diameter 91 mm     Power - 500 W     Impedance - 8 Ω     SPL - 107 dB     Fs - 1350 Hz     Dome material  - titanium
